433MHz RF 무선 송수신모듈 ( FS1000A/XY-MK-5V)

좌측 : 송신모듈(FS1000A)  / 우측 :수신모듈 (XY-MK-5V)

https://www.taydaelectronics.com/fs1000a-xy-mk-5v-433mhz-txrx-module-html.html

433MHz TX+RX Super-regenerative Wireless Transmitting Module FS1000A

433MHZ TX+RX SUPER-REGENERATIVE WIRELESS TRANSMITTING MODULE FS1000A

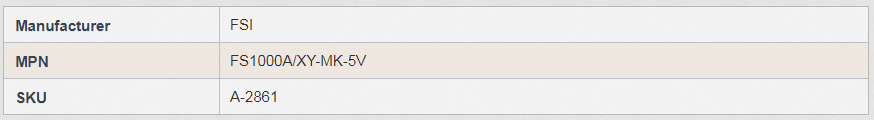

Manufacturer Part No: FS1000A/XY-MK-5V

 Its like using a serial port, except you don't need a wire.

You hook one side up to transmit and one side to receive and you can transmit from one Arduino to another wirelessly.

The signal is poor though and these are susceptible to interference.



Specifications

Trasmitter (TX) Technial Data:

• Model:FS1000A
• transmission range:About 200m depending on voltage
• Working voltage :3.5-12V
• Transfer Rate: 4Kb/s
• Transmit Power: 10mW
• Transmitting frequency: 433M
• External antenna: 25cm single-core wire
• Pin left → right: (DATA; VCC; GND)
• size :19 * 19mm

Receiver (RX) Technical Data:

• Model: XY-MK-5V
• Working voltage: 5V
• Quiescent Current: 4mA
• Receiving frequency: 433.92MHZ
• Receiver sensitivity:-105DB
• External antenna: 32cm single wire

• size : 30mm * 14mm * 7mm



송신 FS1000A Pin Assign

(좌측부터) 송신 핀명	PC / MCU	기 타
DATA	MCU - TX Port  / PC  Comport	TTL레벨 PC (USB-TTL)
VCC	5V (3.5-12V)	전원연결 : 5V TTL 레벨
GND	GND

수신 XY-MK-5V Pin Assign

좌측부터 수신 핀명	PC / MCU	기 타
GND	GND	GND
DATA	MCU 또는 PC 232 RX Port	TTL 레벨
DATA	-
VCC	5V	전원연결 : 5V TTL 레벨



There is an Arduino library and example code available

 : https://www.pocketmagic.net/using-fs1000axy-fst-rf-radio-module-with-avrs/

Using FS1000A/XY-FST RF Radio module with AVRs – PocketMagic



FS1000A / RF Modules

• Setting the emitter’s DATA pin to HIGH will result in a radio transmission that will set the receiver’s DATA PIN to high.

• By doing so, it is obvious that a serial connection can be implemented, once a common baud rate has been defined.

• We’ll push bits to the transmitter’s DATA Pin, assuming we are in the supported baud rate interval, and the receiver will get the data we’ve sent over the radio (plus errors).

• Here is the signal on transmitter’s pin (CH1/yellow) and the signal collected at the receiver (CH2 / cyan):



• This shows that all we have to do is to hook the emitter to the AVR’s UART TX port, and the receiver to another AVR’s UART RX Port.
• We write some code to initialize the UART ports using the same baud rate, and we’re ready to exchange data.
• Here is a sample setup , with receiver connected to an Atmega8 board, showing data on a 2×16 LCD, and the emitter’s board with an Atmega128 and a Nokia 5110 LCD.
• The numbers on the two LCD’s match, as what this setup does is to increment an integer every second, and send it over the radio. So what we see on the 5110 LCD, we also see as V: number on the receiver’s screen.



http://electronics-diy.com/arduino-rf-link-using-433mhz-transmitter-receiver-modules.php

Arduino RF link using 433MHz Transmitter / Receiver modules
